High volume, mission critical

Production MICR printing systems, 95 to 136 pages per minute

Production MICR systems run nightly cycles where a rejected batch is a missed settlement window, not an inconvenience. These machines are built for continuous duty and measured in impressions per month rather than pages per day.

Two paths exist in this class. The monochrome systems push volume: up to a million impressions a month, with media capacity measured in thousands of sheets across up to eight pick points. Those are the Ricoh Pro 8410 and Pro 8420 and the Pro 8310 and Pro 8320, and Ricoh names them on its own MICR printing page. The five-color systems are the Ricoh Pro C7500 and Pro C7210X, both of which Ricoh sells under our model names with MICR. They trade some volume for the ability to print the check background, the security features, and the MICR line in one pass, which removes pre-printed color stock from the process entirely.

Size one against your volume Compare the models

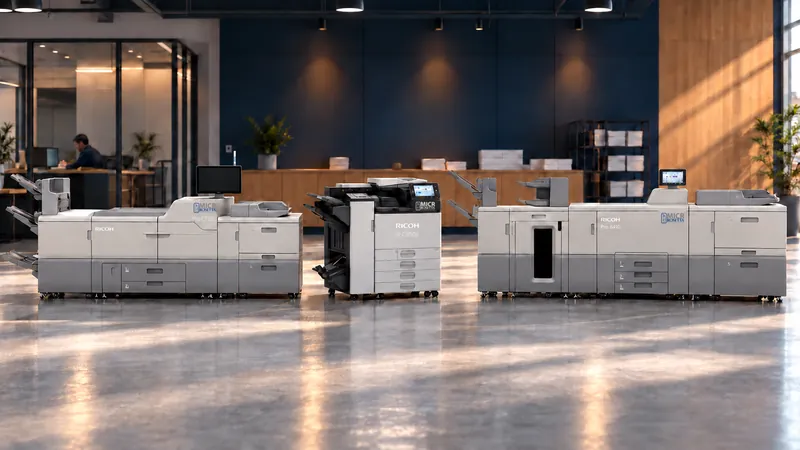

The Pro C7500PM, the IP C8500M and the Pro 8420M side by side on a polished concrete print floor
The models

4 production MICR printers

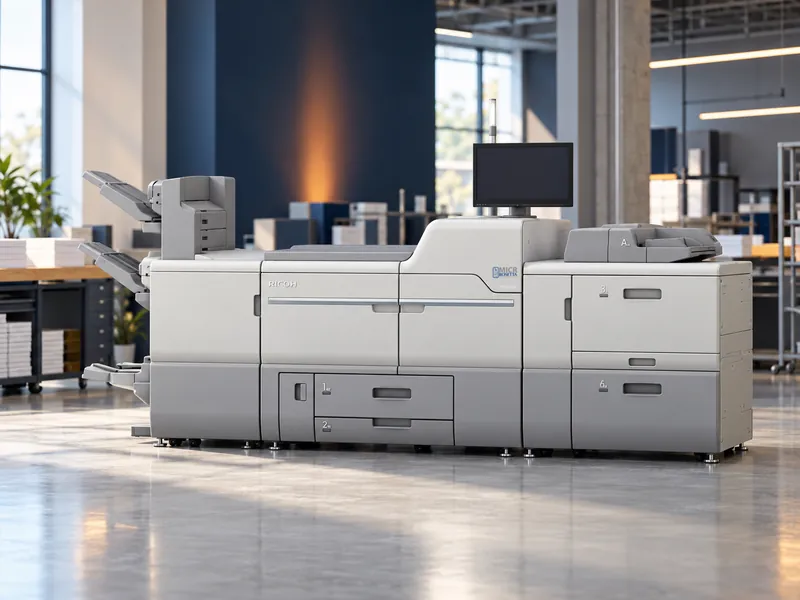

The Pro C7500PM five-color production MICR system on a bright production floor
Production

Pro C7500PM 5-Color MICR Printer

The Pro C7500PM prints at 2400 x 4800 dpi with an optional fifth color station, which is what makes an invisible security feature possible in the same pass as the check itself.

Specifications

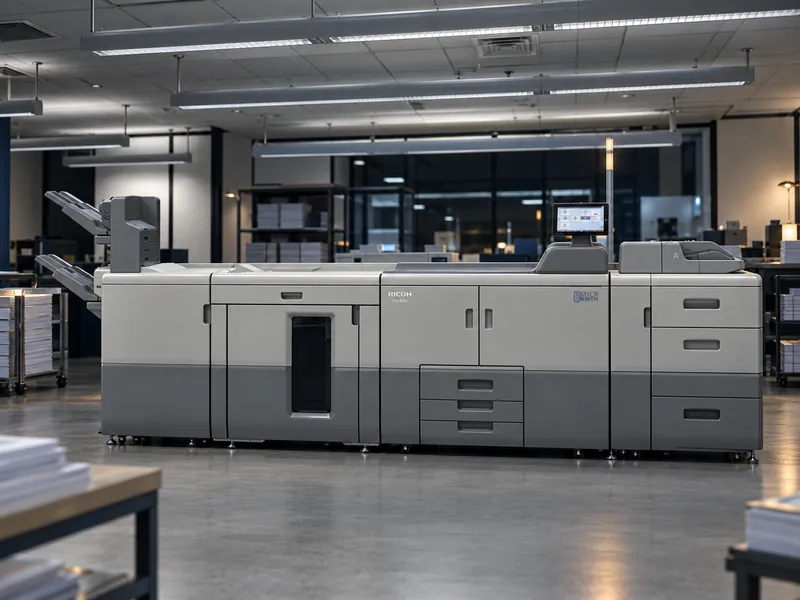

A Pro 8420M production MICR system on a bank operations print floor at night
Production

Pro 8410M / 8420M MICR Printer

The Pro 8410M runs at 111 pages per minute and the Pro 8420M at 136, both at 1200 x 4800 dpi, with media capacity reaching 12,600 sheets.

Specifications

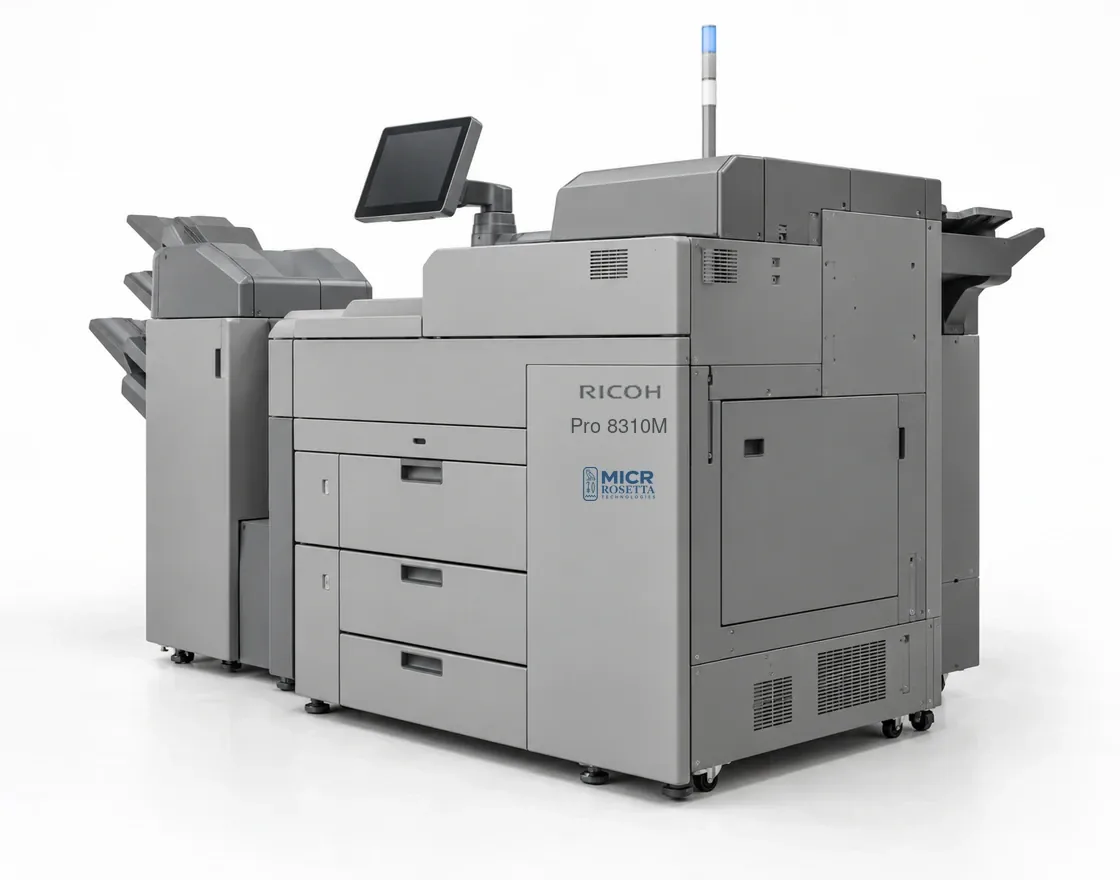

Rosetta Technologies Pro 8310M production MICR printer with large capacity input trays
Production

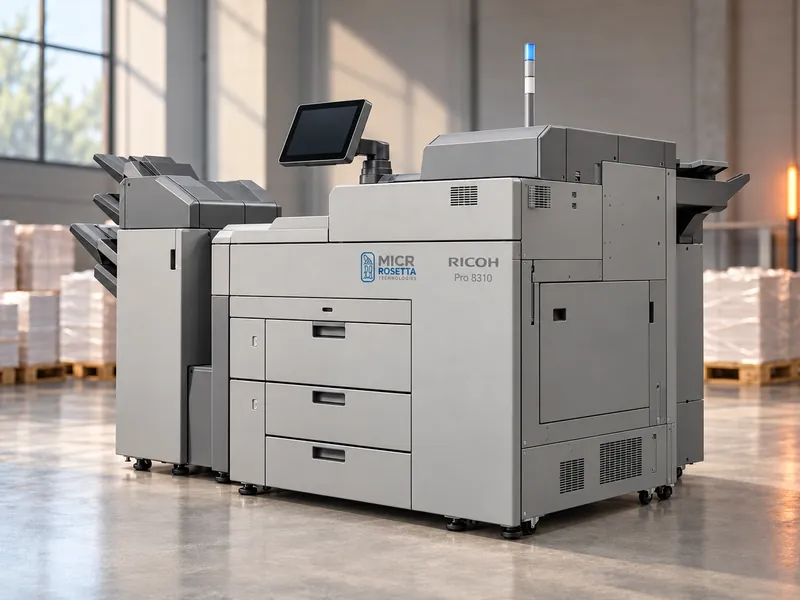

Pro 8310M / 8320M MICR Printer

The Pro 8310M and Pro 8320M run at 111 and 136 pages per minute with up to eight media pick points, which is what a mixed run of checks, IRDs, and carbonless forms actually needs.

Specifications

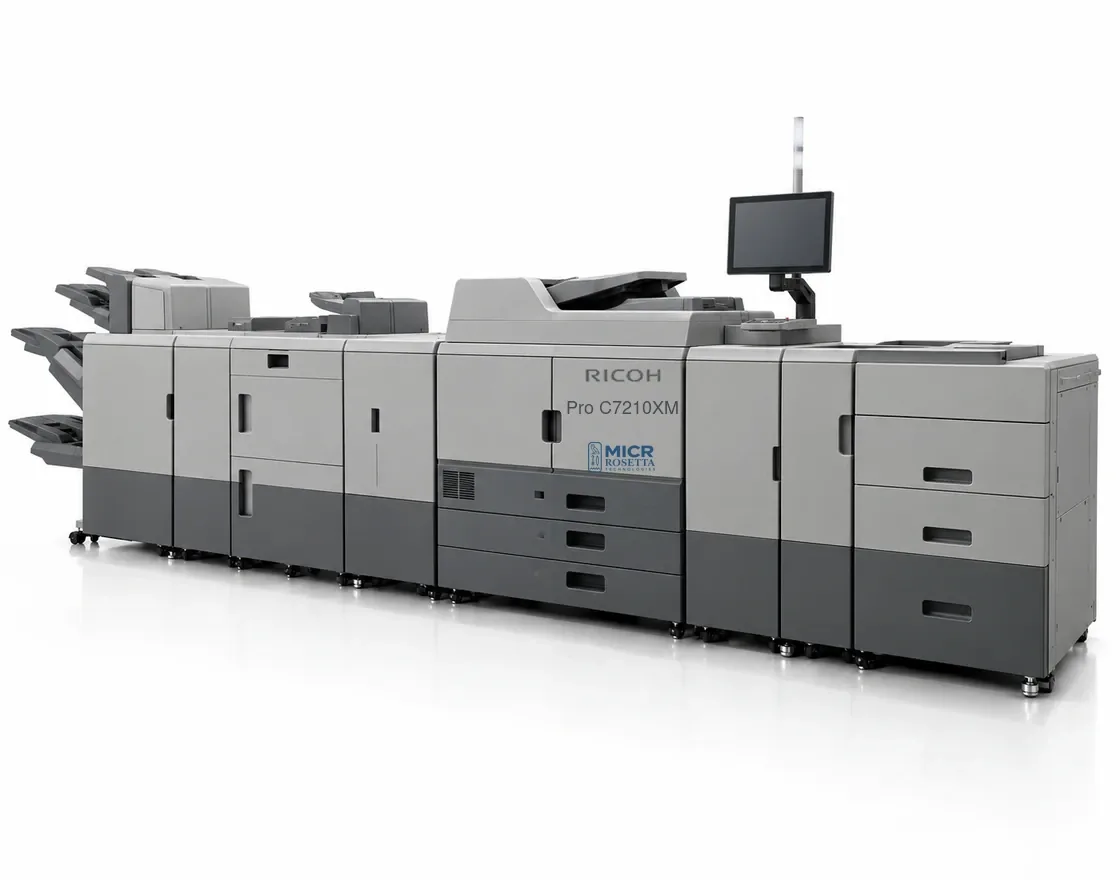

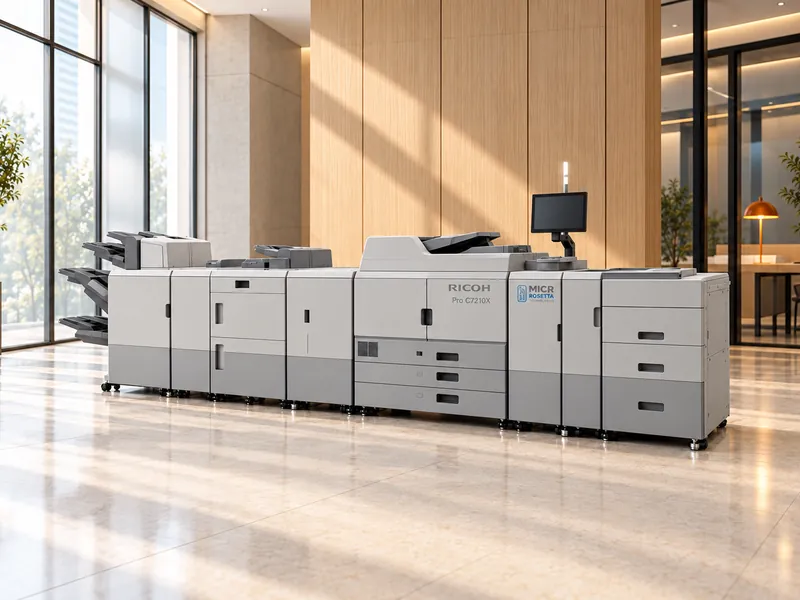

Rosetta Technologies Pro C7210XM five-color production MICR printer
Production

Pro C7210XM Color MICR Printer

The Pro C7210XM carries five drums as standard rather than as an upgrade, which puts the invisible security station in every configuration.

Specifications
Side by side

Compare the production class

Recommended monthly volume is the number to choose on, not top speed. A printer run close to its maximum duty cycle month after month wears its fuser and drum faster, and worn components are a common cause of a weak MICR signal.

Model Print speed Resolution Recommended volume Maximum duty cycle Maximum paper capacity
Pro C7500PM 85 ppm standard, 95 ppm with the optional speed upgrade, Letter, black and white and full color 2400 x 4800 dpi, VCSEL Up to 240,000 pages per month 800,000 impressions per month 16,200 sheets with optional vacuum-feed large capacity trays at 4,400 sheets per tray
Pro 8410M / 8420M Pro 8410M 111 ppm; Pro 8420M 136 ppm 1200 x 4800 dpi via VCSEL Up to 1,000,000 impressions Pro 8410M 3.3 million impressions; Pro 8420M 4 million impressions Up to 12,600 sheets
Pro 8310M / 8320M Pro 8310M up to 111 ppm; Pro 8320M up to 136 ppm 1200 x 4800 dpi via VCSEL Up to 1,000,000 impressions Pro 8310M 3,300,000; Pro 8320M 4,000,000 12,600 sheets with optional large capacity trays, up to eight media pick points
Pro C7210XM 95 ppm, Letter, black and white and full color 2400 x 4800 dpi, VCSEL Up to 240,000 pages per month 800,000 pages per month 16,200 sheets
A five-station color production press with its front covers open, showing the toner stations lined up along the engine

A five-station engine carries four process colors and a fifth station, which is what allows color and MICR in one pass.

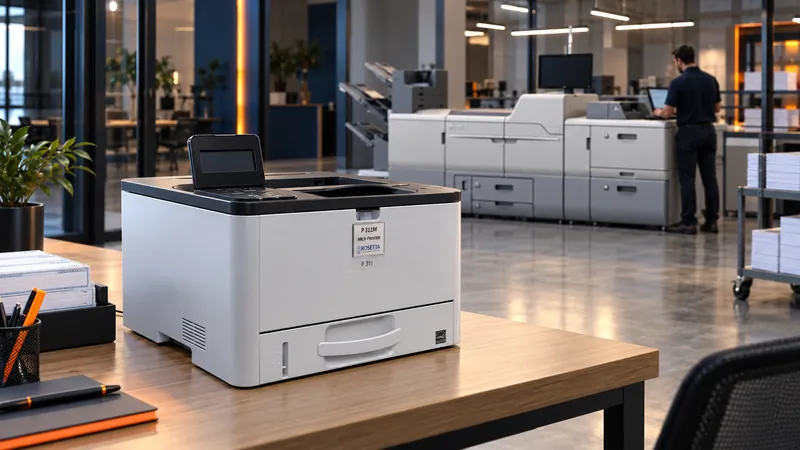

A P 311M desktop MICR printer on a desk in the foreground, and a production MICR system with its operator across the print room behind it

Size on volume, not on speed

P 311M
Up to 5,800 prints per month
P 501M
Up to 10,000 prints per month
SP C840DNM
Up to 50,000 pages per month
IP C8500M
Up to 50,000 prints per month
SP 8400DNM
Up to 53,000 pages per month
Pro C7500PM
Up to 240,000 pages per month
Pro C7210XM
Up to 240,000 pages per month
Pro 8410M / 8420M
Up to 1,000,000 impressions
Pro 8310M / 8320M
Up to 1,000,000 impressions

Recommended monthly volumes. The IP C8500M, Pro 8410M / 8420M and Pro 8310M / 8320M figures are maximum monthly volumes. Maximum duty cycle is a survival rating. Running near it wears the fuser and drum, and worn parts weaken the MICR signal.

Where this class sits against the rest of the line.

Every printer in this class is covered

If your bank reports a MICR quality problem, we investigate it. Where the problem is verified as caused by our materials or modifications and cannot be resolved, we reimburse the fees your bank charges for rejected checks over their acceptable rate.

Conditions apply, including the use of approved supplies, our MICR fonts, and continuous maintenance under an approved service plan.

Request the written terms Read the guarantee terms
Get in touch

Which production machine fits your volume?

The class is decided by what you print in a month, not by the speed on the front of the brochure. Tell us the volume and we will tell you which one, including when the answer is a smaller machine than you expected.
