111 or 136 pages per minute
Two speeds on the same chassis, both at 1200 x 4800 dpi via VCSEL imaging.
Production MICR printer

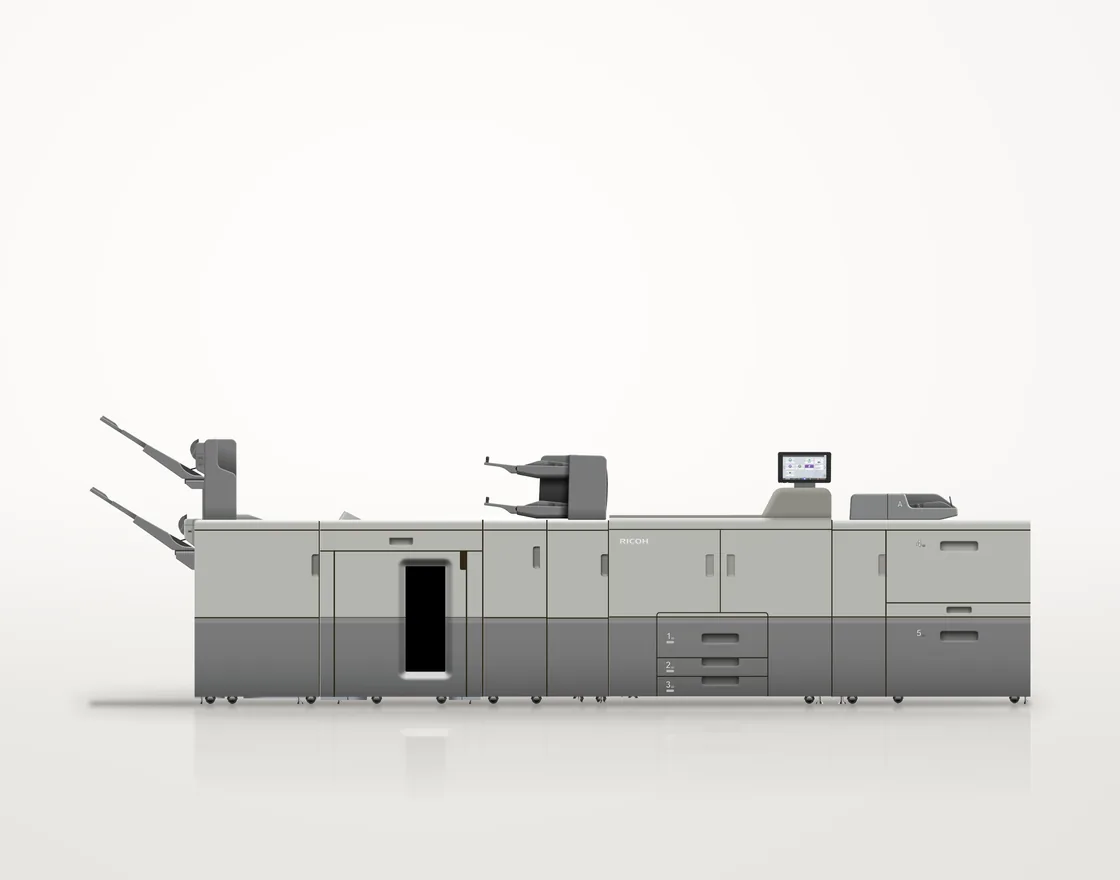

Pro 8410M / 8420M MICR Printer
The Pro 8410M runs at 111 pages per minute and the Pro 8420M at 136, both at 1200 x 4800 dpi, with media capacity reaching 12,600 sheets.
Built on the Ricoh Pro 8410 and Ricoh Pro 8420
Ricoh lists both machines on its own MICR printing page, at 111 and 136 pages per minute.
12,600 sheets of media
6,050 standard, expandable, from 11 lb Bond to 130 lb Cover.
ProMark MICR toner
Four-bottle kits at 350,000 impressions, or a six-pack at 2.1 million.
The fastest monochrome MICR output we build
This is a nightly-cycle machine. Duty cycles run to 3.3 million impressions a month on the 8410M and 4 million on the 8420M, against a recommended maximum of a million impressions. Media runs from 11 lb Bond to 130 lb Cover at sizes to 13 x 19.2 inches, so check runs, statements, and IRD output can share one device.
The value here is the lowest total cost of ownership for high-quality MICR documents, which comes from the toner formulation rather than the hardware. ProMark MICR toner is supplied in four-bottle kits rated at 350,000 impressions.
Specifications
Pro 8410M / 8420M specifications
Speed and quality
| Print speed | Pro 8410M 111 ppm; Pro 8420M 136 ppm |
|---|---|
| Resolution | 1200 x 4800 dpi via VCSEL |
Volume
| Maximum monthly volume | Up to 1,000,000 impressions |
|---|---|
| Duty cycle | Pro 8410M 3.3 million impressions; Pro 8420M 4 million impressions |
Paper handling
| Standard capacity | 6,050 sheets |
|---|---|
| Maximum capacity | Up to 12,600 sheets |
| Media sizes | 5.5 x 8.5 in to 13 x 19.2 in |
| Paper weights | 11 lb Bond to 130 lb Cover, 40 to 350 g/m2 |
Controller
| Processor | Intel Atom Bay Trail-1, 1.91 GHz |
|---|---|
| Memory | 2 GB RAM |
| Storage | 640 GB hard drive |
| Connectivity | Ethernet, USB 2.0, SD card; optional wireless LAN and Bluetooth |
MICR and security
| MICR fonts | Certified E13B and CMC-7 |
|---|---|
| Compliance | ASC X9 and ABA compliant MICR output |
| Guarantee | MICR Performance Guarantee included |
Physical
| Base engine | Ricoh Pro 8410 and Ricoh Pro 8420 |
|---|---|
| Dimensions | 45 in W x 35.4 in D x 68.3 in H, main unit only, including attention lamp |
| Weight | 911 lbs |
| Power | 208 to 240V, 20A, 60Hz; Pro 8410M under 2,820W, Pro 8420M under 3,070W |
Ask us for the consumable part numbers for this model when you order.
Support
Service plans for this printer
A service plan has to be added at the time of purchase. It cannot be added later, which is worth knowing before the order goes in.
4-Hour Response
Monday to Friday, 8 to 5
We handle the first call and may dispatch a Ricoh authorized service technician to repair the device on site. Ricoh aims to arrive within four hours during normal business hours.
4-Hour Response, 24/7
Monday to Sunday, 24 hours
A contracted service provider handles the first call to diagnose and resolve, with the same four-hour on-site target.
Not available on the Pro 8410M / 8420M: Exchange Warranty. All three plans compared.
Technical support is included with all plans. An exchange or a dispatch happens only where the issue cannot be resolved by telephone. Toner and consumables are not covered. A service plan must be added at the time of purchase.
Other production models
Compare against the rest of the class
Pro C7500PM 5-Color MICR Printer
The Pro C7500PM prints at 2400 x 4800 dpi with an optional fifth color station, which is what makes an invisible security feature possible in the same pass as the check itself.
Specifications
Pro 8310M / 8320M MICR Printer
The Pro 8310M and Pro 8320M run at 111 and 136 pages per minute with up to eight media pick points, which is what a mixed run of checks, IRDs, and carbonless forms actually needs.
Specifications
Pro C7210XM Color MICR Printer
The Pro C7210XM carries five drums as standard rather than as an upgrade, which puts the invisible security station in every configuration.
Specifications
Get in touch
Is the Pro 8410M / 8420M the right size for your volume?
Tell us the monthly volume at your peak and the reject rate you are living with now. Those two numbers decide whether this is the right machine, and they are the two a specification sheet cannot tell you.
