Invisible security in one pass
The optional fifth station carries clear or invisible red fluorescent toner for embedded watermarks.
Production MICR printer

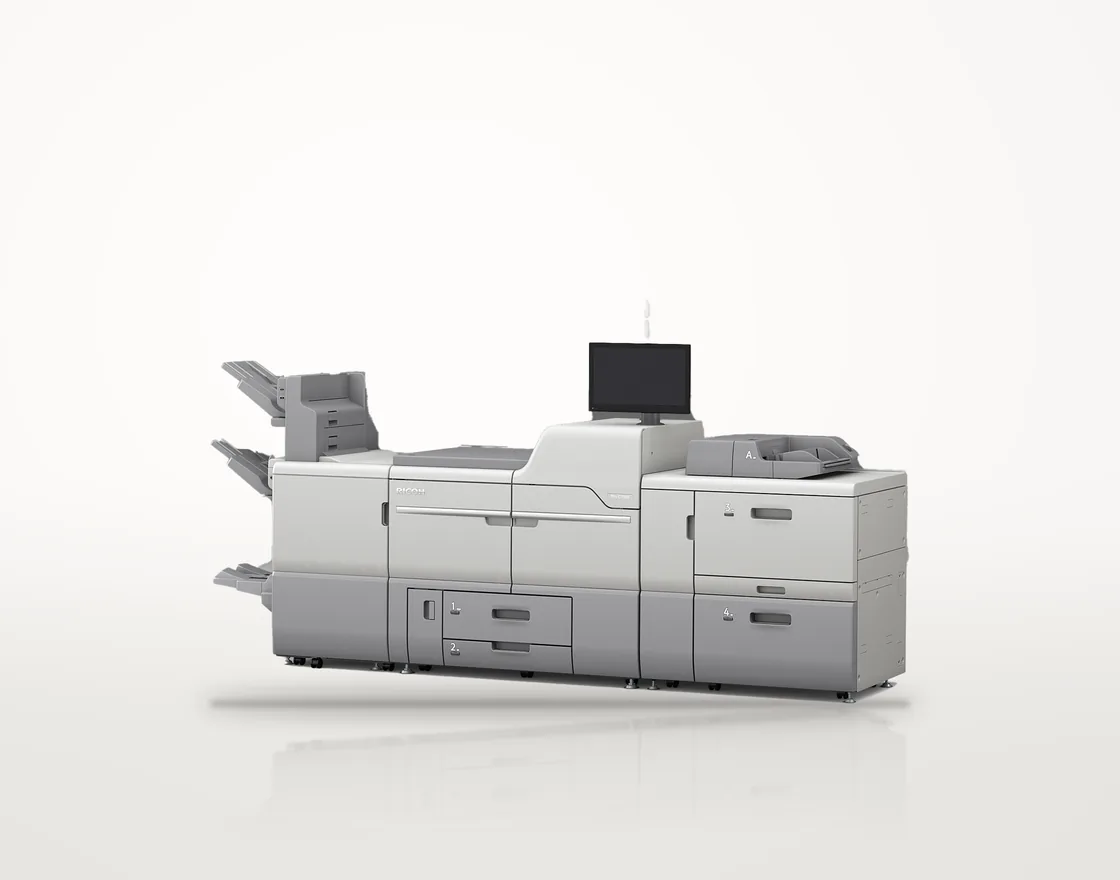

Pro C7500PM 5-Color MICR Printer
The Pro C7500PM prints at 2400 x 4800 dpi with an optional fifth color station, which is what makes an invisible security feature possible in the same pass as the check itself.
Built on the Ricoh Pro C7500
Ricoh sells this machine as the RICOH Pro C7500PM, with our ProMark MICR toner and the MICR Performance Guarantee.
2400 x 4800 dpi VCSEL
Press-class imaging, with duplex up to 13 x 38 in.
16,200 sheets of input
Scales with optional vacuum-feed large capacity trays at 4,400 sheets per tray.
A five-color press that turns plain security paper into a negotiable document
The fifth station carries clear or invisible red fluorescent toner. That allows a watermark or a security feature that is not visible under normal light to be laid down alongside the visible check design and the MICR line, in one pass, on plain security paper. No other manufacturer offers five-color printing at this speed and price point.
Recommended volume is 240,000 pages a month against an 800,000 impression maximum. Media capacity reaches 16,200 sheets with optional vacuum-feed large capacity trays, and sheets can run to 13 x 49.2 inches, which covers multi-check statements and mailers rather than only single checks.
Specifications
Pro C7500PM specifications
Speed and quality
| Print speed | 85 ppm standard, 95 ppm with the optional speed upgrade, Letter, black and white and full color |
|---|---|
| Resolution | 2400 x 4800 dpi, VCSEL |
| Warm-up | Less than 300 seconds |
| Technology | Four-drum standard or optional five-drum dry electrostatic transfer with internal transfer belt, oil-less belt fusing |
Volume
| Recommended volume | Up to 240,000 pages per month |
|---|---|
| Maximum duty cycle | 800,000 impressions per month |
Paper handling

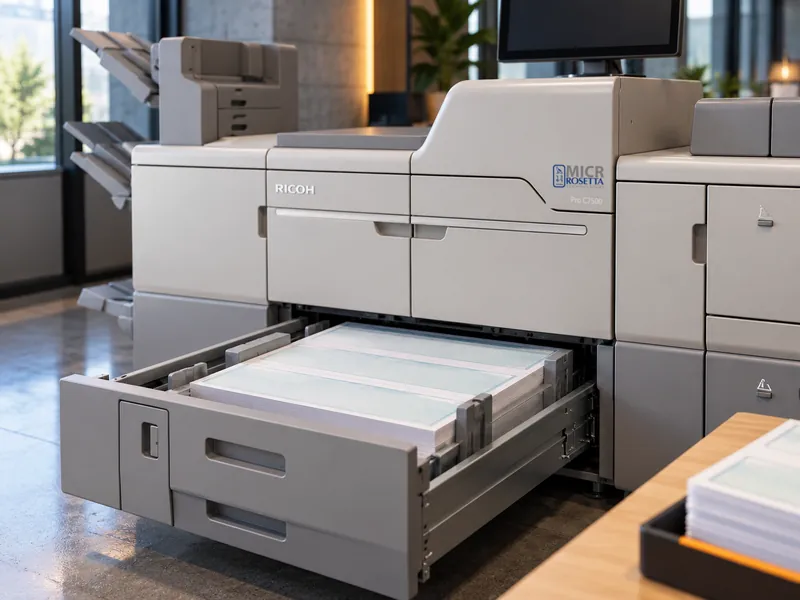

| Standard capacity | Tray 1 2,500 sheets, Tray 2 2,000 sheets |
|---|---|
| Maximum capacity | 16,200 sheets with optional vacuum-feed large capacity trays at 4,400 sheets per tray |
| Bypass | Multi Bypass Tray, 500 sheets, 3.94 x 5.5 in to 13 x 19.2 in |
| Paper sizes | Tray 1 8.5 x 11 in; Tray 2 5.5 x 5.5 in to 13 x 18 in; media options to 13 x 49.2 in |
| Paper weights | Tray 1 52 to 300 g/m2; Tray 2 52 to 256 g/m2; media options to 360 g/m2 |
| Duplex | Standard, up to 13 x 38 in |
| Output capacity | Up to 13,750 sheets with two optional stackers and the 3,000-sheet finisher |
| Multiple prints | Up to 9,999 sets |
Controller
| Print controllers | Fiery N-70A required; Fiery N-50A optional |
|---|---|

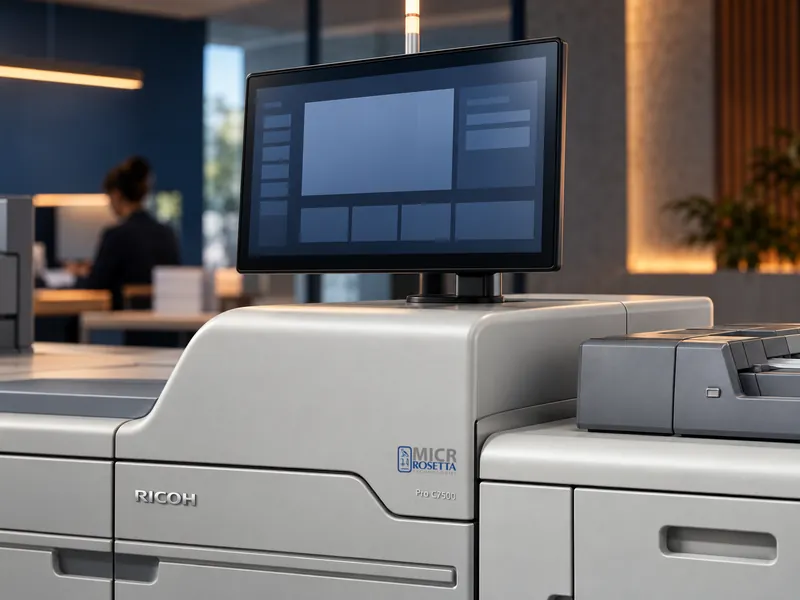

| Control panel | 21 in full-color Smart Touch Panel |
MICR and security
| MICR fonts | Rosetta Technologies certified E-13B and CMC-7 |
|---|---|
| Compliance | ASC X9, ABA, and CPA compliant MICR output |
| Media | Perforated check stock, pressure seal, IRD paper |
| Embedded security | Clear or invisible red fluorescent toner for watermarks and invisible security features |
| Guarantee | ANSI, ABA, and CPA acceptance standards, using our approved check stock, supplies, MICR fonts, and authorized service |
| Security | Machine, network, file, and user administrator authentication; Windows, LDAP, Kerberos, Basic, User Code, and 802.1x wired user authentication; SSL, S/MIME, IPsec, SMTP over SSL, TLS; DOSS and hard drive encryption; IP filtering; locked print; quota |
Physical
| Base engine | Ricoh Pro C7500 |
|---|---|
| Dimensions | 52 in W x 36 in D x 48 in H, main unit only |
| Weight | Less than 1,235 lbs, main unit only |
| Power | 208 to 240V, 16A, 50/60Hz, two dedicated cords; less than 5,000W |
Supplies and part numbers
What this printer consumes
MICR supplies are not interchangeable with standard supplies, and the MICR Performance Guarantee depends on using approved ones. The part numbers below are the approved list for this model.
| Part number | Item | Yield |
|---|---|---|
| 1075C000 | Black MICR Print Cartridge | 75,000 impressions per kit at 4% coverage |
Support
Service plans for this printer
A service plan has to be added at the time of purchase. It cannot be added later, which is worth knowing before the order goes in.
4-Hour Response
Monday to Friday, 8 to 5
We handle the first call and may dispatch a Ricoh authorized service technician to repair the device on site. Ricoh aims to arrive within four hours during normal business hours.
4-Hour Response, 24/7
Monday to Sunday, 24 hours
A contracted service provider handles the first call to diagnose and resolve, with the same four-hour on-site target.
Not available on the Pro C7500PM: Exchange Warranty. All three plans compared.
Technical support is included with all plans. An exchange or a dispatch happens only where the issue cannot be resolved by telephone. Toner and consumables are not covered. A service plan must be added at the time of purchase.
Other production models
Compare against the rest of the class
Pro 8410M / 8420M MICR Printer
The Pro 8410M runs at 111 pages per minute and the Pro 8420M at 136, both at 1200 x 4800 dpi, with media capacity reaching 12,600 sheets.
Specifications
Pro 8310M / 8320M MICR Printer
The Pro 8310M and Pro 8320M run at 111 and 136 pages per minute with up to eight media pick points, which is what a mixed run of checks, IRDs, and carbonless forms actually needs.
Specifications
Pro C7210XM Color MICR Printer
The Pro C7210XM carries five drums as standard rather than as an upgrade, which puts the invisible security station in every configuration.
Specifications
Get in touch
Is the Pro C7500PM the right size for your volume?
Tell us the monthly volume at your peak and the reject rate you are living with now. Those two numbers decide whether this is the right machine, and they are the two a specification sheet cannot tell you.
