Five drums as standard
The invisible security station is in the base configuration, not an option.
Production MICR printer
Pro C7210XM Color MICR Printer
The Pro C7210XM carries five drums as standard rather than as an upgrade, which puts the invisible security station in every configuration.
Built on the Ricoh Pro C7210X
Ricoh sells this machine as the RICOH Pro C7210XM Graphic Arts Edition with MICR, with our ProMark MICR toner.
95 ppm at 2400 x 4800 dpi
Full color and black and white at the same speed, 100% duplex productivity.
CheckStream Color Plus
Over 300 digital check forms with accounting package integrations.
Five drums, standard, at 95 pages per minute
That fifth station is the whole argument. Clear or fluorescent toner lays an invisible watermark or security feature into the check in the same pass as the color design and the MICR line. A check produced this way carries a security feature that cannot be reproduced by photocopying the document, and it does so without any pre-printed stock in the building.
CheckStream Color Plus supplies the forms, with over 300 digital check designs and integrations for Microsoft Dynamics, QuickBooks, Sage-lineage packages, Timberline, Yardi, and others. Recommended volume is 240,000 pages a month against an 800,000 page duty cycle.
Specifications
Pro C7210XM specifications
Speed and quality
| Print speed | 95 ppm, Letter, black and white and full color |
|---|---|
| Resolution | 2400 x 4800 dpi, VCSEL |
| Warm-up | Less than 300 seconds |
| Technology | Five-drum dry electrostatic transfer with internal transfer belt, oil-less belt fusing |
Volume
| Recommended volume | Up to 240,000 pages per month |
|---|---|
| Maximum duty cycle | 800,000 pages per month |
Paper handling

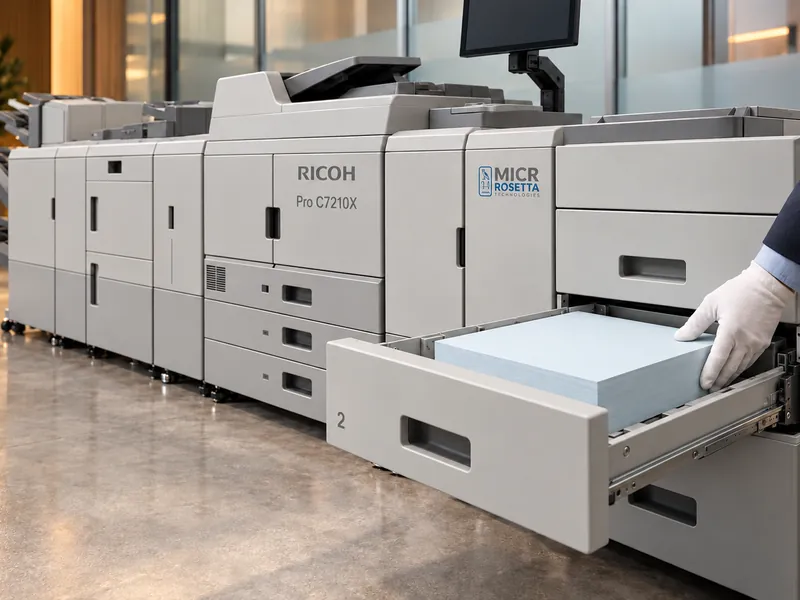

| Standard capacity | 2,500 sheets: two 1,000-sheet trays plus one 500-sheet tray |
|---|---|
| Maximum capacity | 16,200 sheets |
| Paper sizes | Tray 1 8.5 x 11 in; Tray 2 5.5 x 5.5 in to 13 x 18 in; media options to 13 x 49.2 in |
| Paper weights | Tray 1 52 to 300 g/m2; Tray 2 52 to 256 g/m2; media options to 360 g/m2 |
| Media types | MICR: perforated check stock, pressure seal, IRD paper. General: bond, carbonless, coated, card stock, colored, labels, letterhead, plain, preprinted, recycled, tab stock |
| Duplex | Standard, 100% productivity |
| Output capacity | Up to 13,750 sheets with two optional stackers and the 3,000-sheet finisher |
| Multiple prints | Up to 9,999 sets |
Controller
| Print controllers | Ricoh TotalFlow Print Server R-62A; EFI Fiery E-85A; EFI Fiery E-45A |
|---|---|
| Control panel | 17 in color monitor |
MICR and security
| MICR fonts | Rosetta Technologies certified E-13B and CMC-7 |
|---|---|
| Compliance | ASC X9 and ABA compliant MICR output |
| Embedded security | Clear or fluorescent toner on the fifth station for invisible watermarks and security features |
| Toner | ProMark MICR toner |
| Guarantee | ANSI, ABA, and Canadian Payments Association acceptance standards, using our approved check stock, supplies, MICR fonts, and authorized service |
| Security | Machine, network, file, and user administrator authentication; DOSS; encryption protocols; IP filtering; locked print; network controls; quota settings |
Software
| CheckStream Color Plus | Over 300 digital check forms |
|---|---|
| Integrations | Microsoft Dynamics, Microsoft Money, QuickBooks, Peach Tree, MAS 90, Macola, Dac Easy, RealWorld, Timberline, Yardi |
Physical

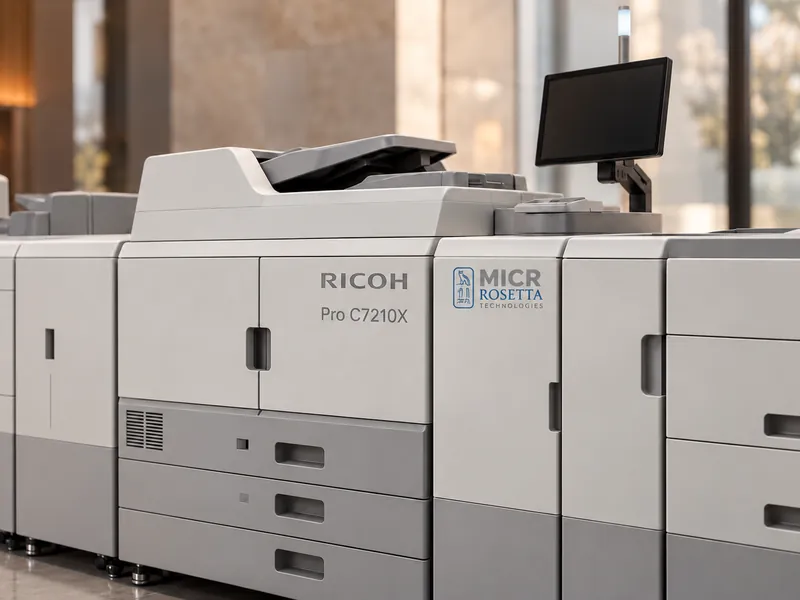

| Base engine | Ricoh Pro C7210X |
|---|---|
| Dimensions | 52 in x 35.8 in x 48 in, main unit only |
| Weight | Less than 1,279 lbs |
| Power | 208 to 240V, 16A, 50/60Hz, two dedicated cords; less than 5,000W |
Supplies and part numbers
What this printer consumes
MICR supplies are not interchangeable with standard supplies, and the MICR Performance Guarantee depends on using approved ones. The part numbers below are the approved list for this model.
| Part number | Item | Yield |
|---|---|---|
| 1072C000 | Print Cartridge, Black, MICR ProMark | 65,000 to 70,000 at 4% coverage |
| 1072C001 | Developer MICR ProMark, one bottle | Not published |
Support
Service plans for this printer
A service plan has to be added at the time of purchase. It cannot be added later, which is worth knowing before the order goes in.
4-Hour Response
Monday to Friday, 8 to 5
We handle the first call and may dispatch a Ricoh authorized service technician to repair the device on site. Ricoh aims to arrive within four hours during normal business hours.
4-Hour Response, 24/7
Monday to Sunday, 24 hours
A contracted service provider handles the first call to diagnose and resolve, with the same four-hour on-site target.
Not available on the Pro C7210XM: Exchange Warranty. All three plans compared.
Technical support is included with all plans. An exchange or a dispatch happens only where the issue cannot be resolved by telephone. Toner and consumables are not covered. A service plan must be added at the time of purchase.
Other production models
Compare against the rest of the class
Pro C7500PM 5-Color MICR Printer
The Pro C7500PM prints at 2400 x 4800 dpi with an optional fifth color station, which is what makes an invisible security feature possible in the same pass as the check itself.
Specifications
Pro 8410M / 8420M MICR Printer
The Pro 8410M runs at 111 pages per minute and the Pro 8420M at 136, both at 1200 x 4800 dpi, with media capacity reaching 12,600 sheets.
Specifications
Pro 8310M / 8320M MICR Printer
The Pro 8310M and Pro 8320M run at 111 and 136 pages per minute with up to eight media pick points, which is what a mixed run of checks, IRDs, and carbonless forms actually needs.
Specifications
Get in touch
Is the Pro C7210XM the right size for your volume?
Tell us the monthly volume at your peak and the reject rate you are living with now. Those two numbers decide whether this is the right machine, and they are the two a specification sheet cannot tell you.
