60 ppm, 2.2 second first print
Continuous 60 pages per minute at up to 1200 x 1200 dpi, with 100% duplex productivity.
Workgroup MICR printer

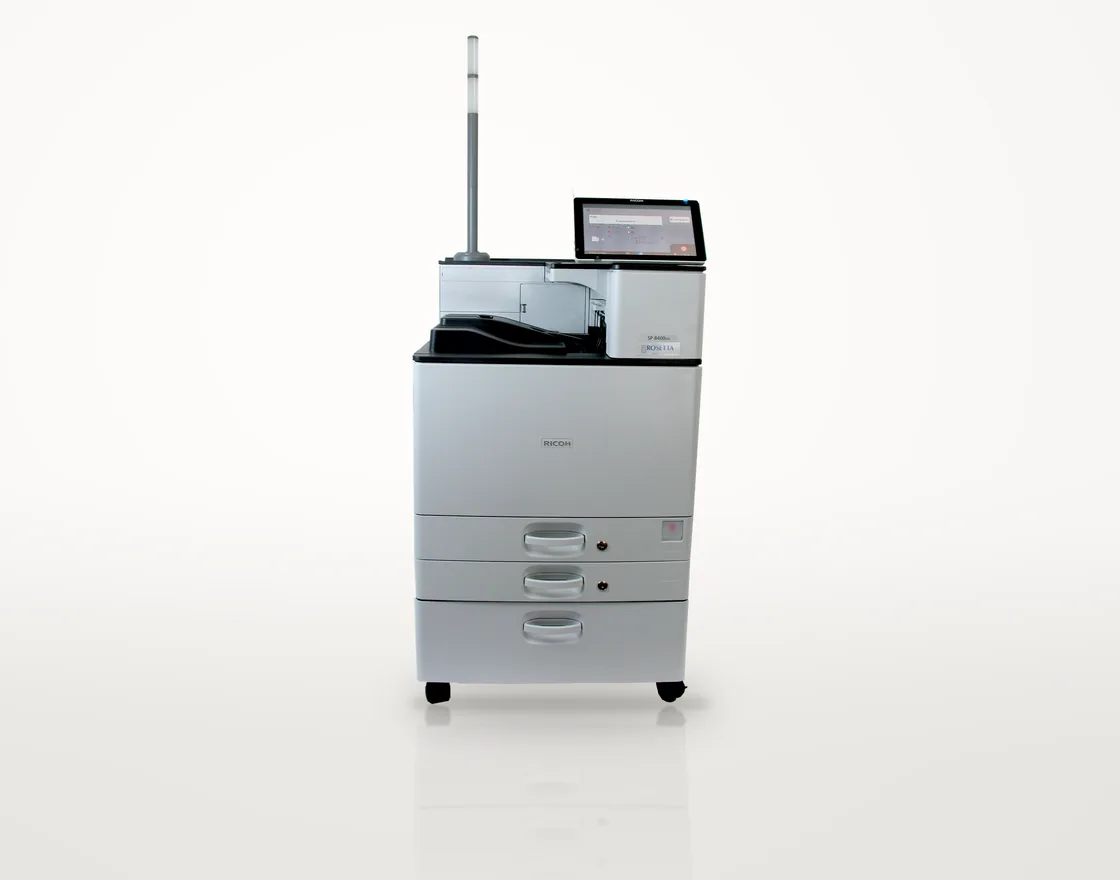

SP 8400DNM MICR Printer
At 60 pages per minute with a 53,000 page recommended monthly volume, the SP 8400DNM is where the workgroup class stops being a desk machine and starts being a department's production line.
Built on the Ricoh SP 8400DN
A 60 ppm Ricoh departmental engine, re-engineered for MICR. Your Ricoh service organization already supports it.

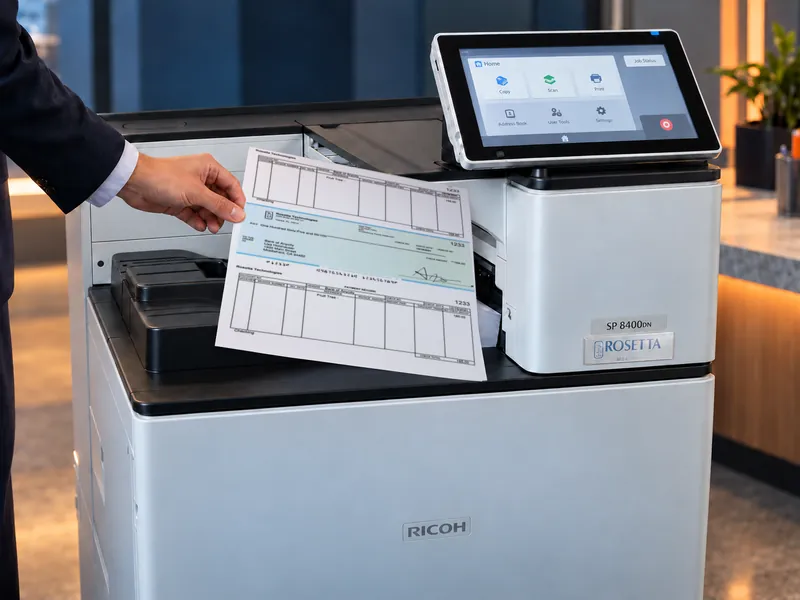

Check, pressure seal, and IRD
The three media types check printing and returns processing actually run on.
ASC X9 and ABA compliant
Rosetta Technologies certified E-13B and CMC-7 fonts, covered by the MICR Performance Guarantee.
The top of the workgroup class, sized for a bank branch back office
It handles the three media types that matter for this work: perforated check stock, pressure seal, and IRD paper. Input scales from 1,200 sheets standard to 4,700 with optional trays and large capacity units, and output scales to 4,000 sheets with the 3,000-sheet finisher. Duplex runs at 100% productivity rather than the reduced rate a lighter machine gives you.
Five configurations exist: the base SP 8400DNM, a Secure model with locking trays, a Guardian model that adds a secure 320 GB hard drive and Locked Print, and IPDS and IPDS Secure models for host-driven environments. The MICR drum is rated at 160,000 impressions.
Specifications
SP 8400DNM specifications
Speed and quality
| Print speed | 60 ppm, Letter, continuous |
|---|---|
| Resolution | 600 x 600 and up to 1200 x 1200 dpi |
| First print | 2.2 seconds |
| Warm-up | 21 seconds or less |
Volume
| Recommended volume | Up to 53,000 pages per month |
|---|---|
| Maximum duty cycle | 300,000 pages per month |
Paper handling
| Standard capacity | 1,200 sheets: two 550-sheet trays plus 100-sheet bypass |
|---|---|
| Maximum capacity | Up to 4,700 sheets |
| Paper sizes | Trays 1 and 2, 5.5 x 8.5 in to 11.7 x 17 in; bypass 3.5 x 5.8 in to 12 x 23.6 in; duplex to 11.7 x 17 in |
| Paper weights | Trays 16 to 82 lb Bond, 170 lb Index; bypass from 14 lb Bond; duplex to 68 lb Bond, 140 lb Index |
| Media types | Check stock, pressure seal, IRD paper, bond, card stock, letterhead, labels, envelopes |
| Duplex | Standard, 100% productivity |
| Output capacity | 500 sheets up to 8.5 x 11 in, 250 sheets at 8.5 x 14 in and above; up to 4,000 with the 3,000-sheet finisher |
Controller
| Processor | Intel Atom Bay Trail, 1.46 GHz |
|---|---|
| Memory | 2.0 GB RAM |
| Storage | 320 GB hard drive, optional on the base model and standard on Guardian, IPDS, and IPDS Secure |
| Connectivity | Gigabit Ethernet, two USB 2.0 Type A, two SD card slots; optional 802.11 a/b/g/n wireless and IEEE 1284 parallel |
| Page description | Standard PCL 5e, PCL 6, PostScript 3 emulation, PDF Direct emulation, Media Direct Print; optional Adobe PostScript 3 and IPDS |
| Control panel | 10.1 in Smart Operation Panel, color touch, with SD slot and USB host |
MICR and security
| MICR fonts | Rosetta Technologies certified E-13B and CMC-7 |
|---|---|
| Compliance | ASC X9 and ABA compliant output |
| MICR drum life | 160,000 impressions |
| Guarantee | MICR Performance Guarantee included |
| Security | Windows, LDAP, Kerberos, Basic, User Code, and 802.1x authentication; job and access logs; unauthorized copy control; SSL/TLS; IPSec; IP filtering; compulsory security stamp |
Physical
| Base engine | Ricoh SP 8400DN |
|---|---|
| Dimensions | 23.1 in W x 25.7 in D x 28.3 in H |
| Weight | 125.6 lbs including consumables |
| Power | 120 to 127V, 60Hz, 12A; 1,600W operating, 0.79W sleep |
Configurations
| SP 8400DNM | Base configuration |
|---|---|

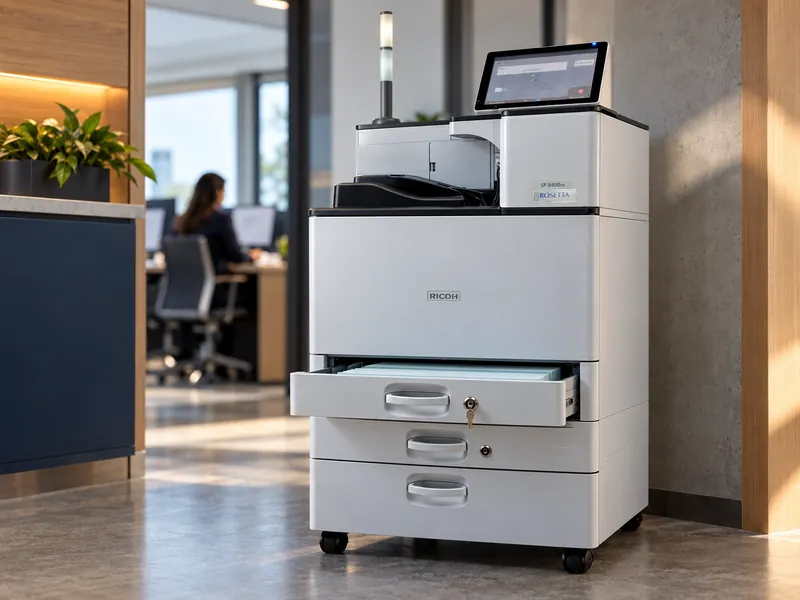

| Secure | Locking paper trays |
| Guardian | Secure 320 GB hard drive with Locked Print |
| IPDS | IPDS support, 320 GB hard drive standard |
| IPDS Secure | IPDS with the secure drive configuration |
Not available on this model: On-board MICR verification.
Supplies and part numbers
What this printer consumes
MICR supplies are not interchangeable with standard supplies, and the MICR Performance Guarantee depends on using approved ones. The part numbers below are the approved list for this model.
| Part number | Item | Yield |
|---|---|---|
| 10840000 | MICR Toner, one bottle | 50,000 impressions at 4% coverage |
| 10840001 | Maintenance Kit A MICR | 160,000 impressions: photoconductor drum, transfer unit, waste toner bottle |
| 10840003 | Maintenance Kit B | 320,000-page fuser |
Support
Service plans for this printer
A service plan has to be added at the time of purchase. It cannot be added later, which is worth knowing before the order goes in.
4-Hour Response
Monday to Friday, 8 to 5
We handle the first call and may dispatch a Ricoh authorized service technician to repair the device on site. Ricoh aims to arrive within four hours during normal business hours.
Not available on the SP 8400DNM: Exchange Warranty, 4-Hour Response, 24/7. All three plans compared.
Technical support is included with all plans. An exchange or a dispatch happens only where the issue cannot be resolved by telephone. Toner and consumables are not covered. A service plan must be added at the time of purchase.
